Beacon Reception at VK4SNScroll down to see the charts. Updated every 15 minutesLIVE NOW Missing data is due to storms, contesting, or other activities that would interfere with data collection at my QTH.Each beacon transmits once on each band once every three minutes, 24 hours a day. A transmission consists of the callsign of the beacon sent at 22 words per minute followed by four one-second dashes. The callsign and the first dash are sent at 100 watts. The remaining dashes are sent at 10 watts, 1 watt and 100 milliwatts. At the end of each 10 second transmission, the beacon steps to the next higher band and the next beacon in the sequence begins transmitting.
Location: QG62ek Glenore Grove, Queensland, Australia.

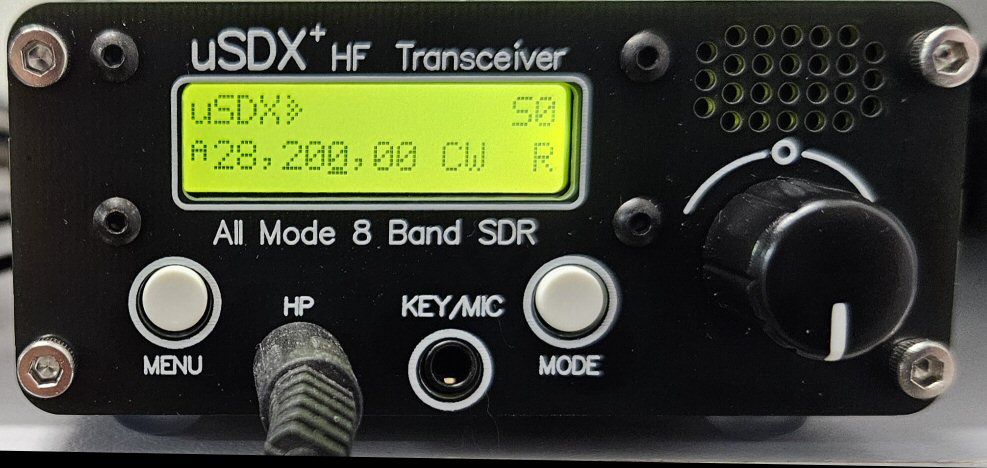

The receiver is a uSDX+ Transceiver connected to a multiband
vertical 7 meters long. Reception of the IARU/NCDXF International Beacon Project beacons. Other Beacon Monitoring web pages are linked from the International Beacon Project Monitors site.
|
Legend
|
|
Beacon locations |
|
|
|

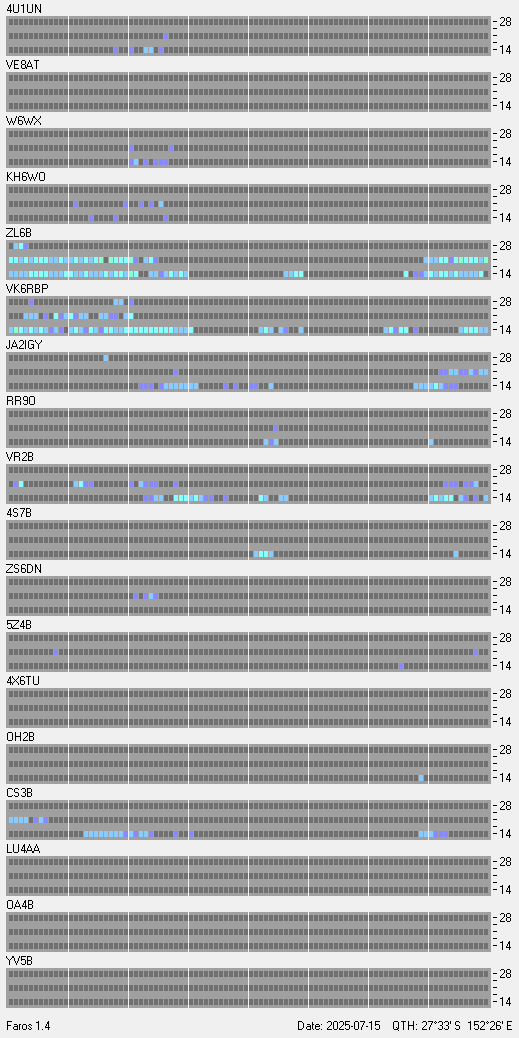

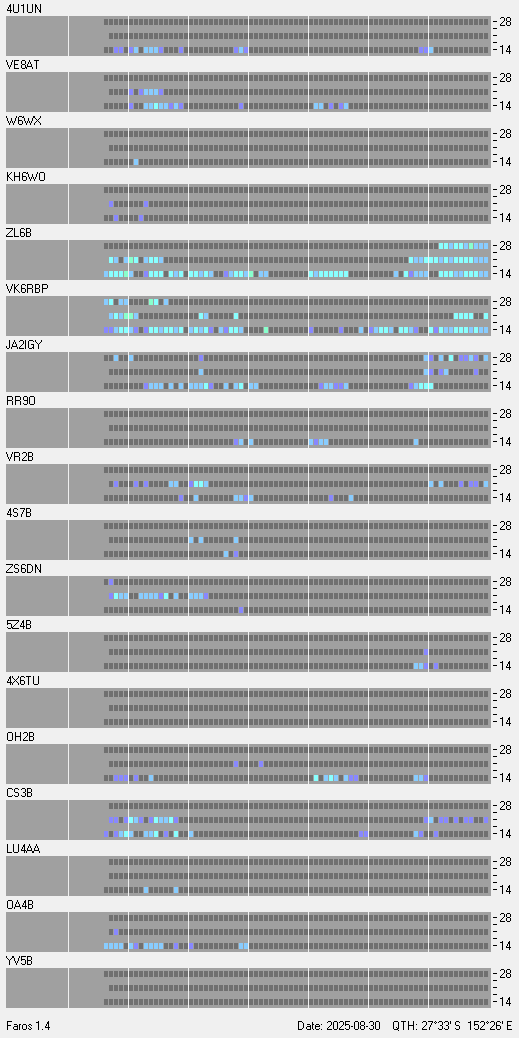

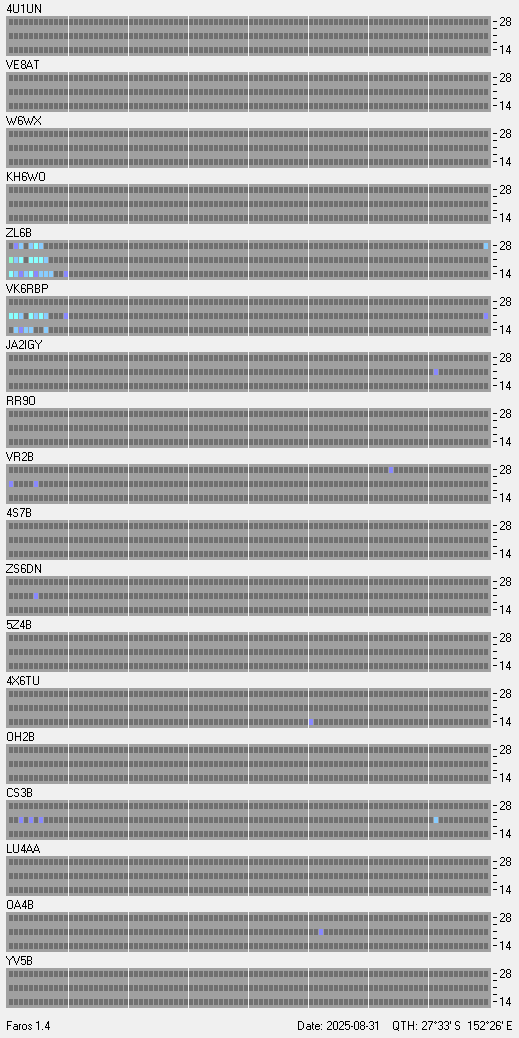

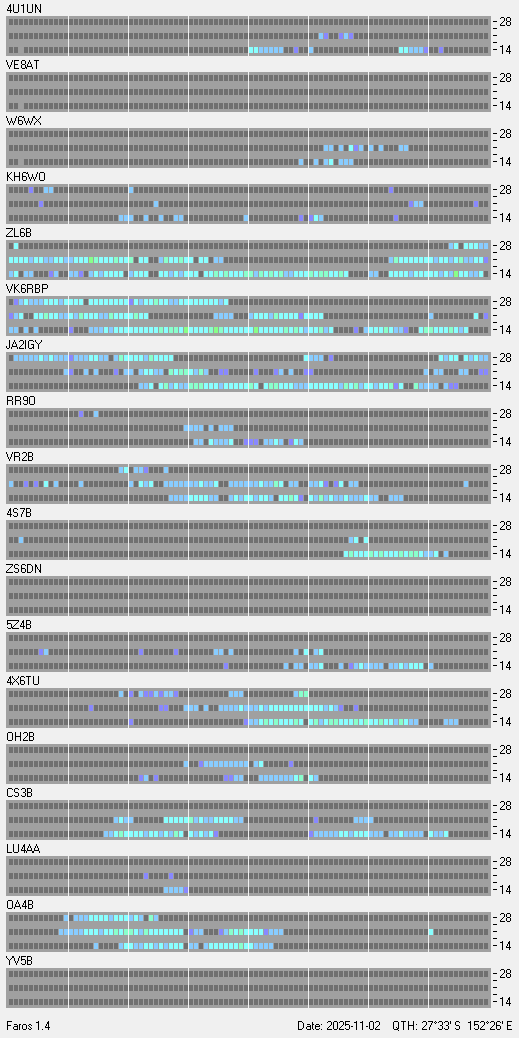

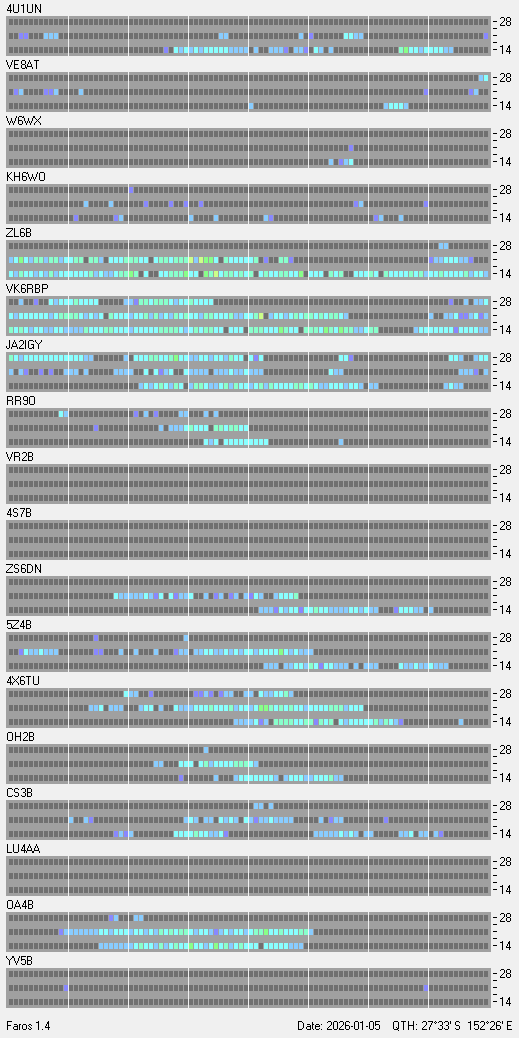

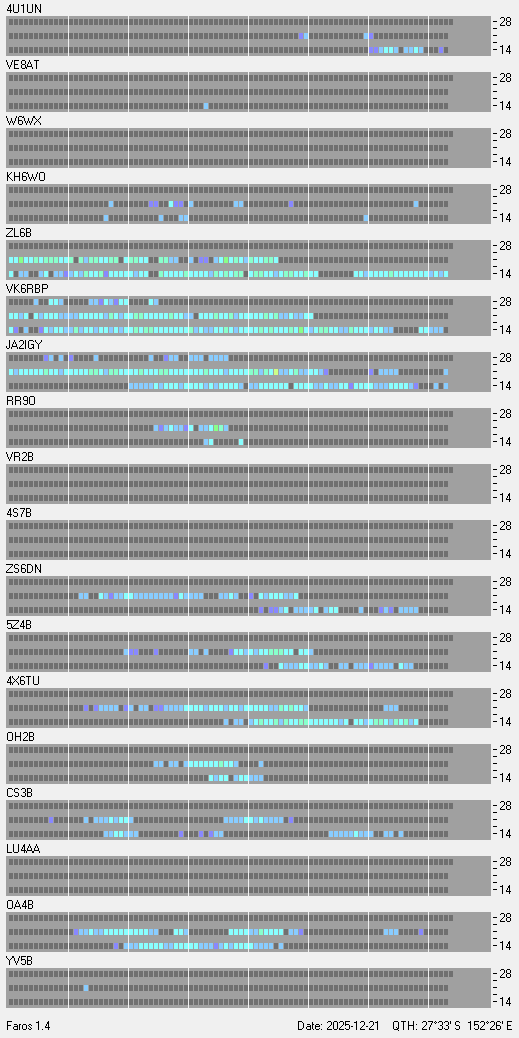

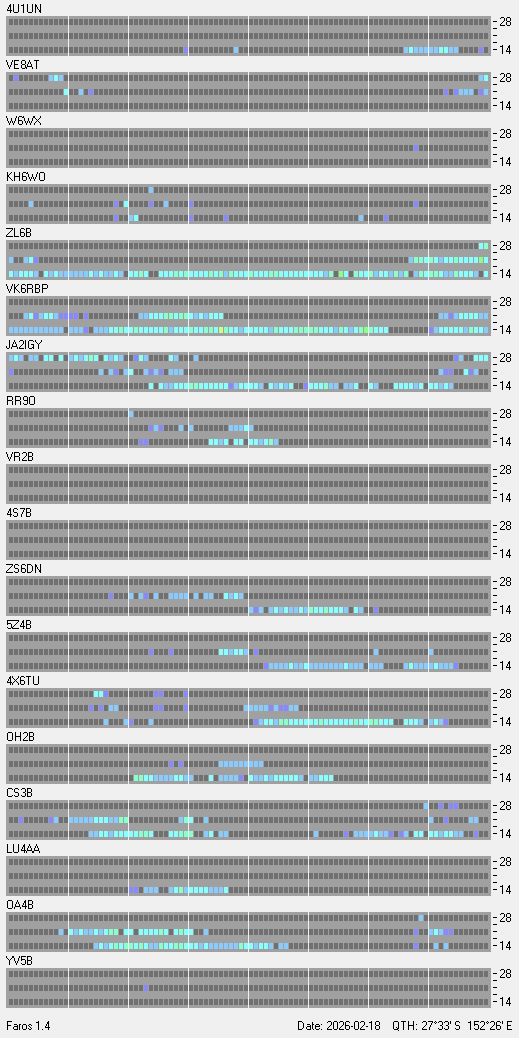

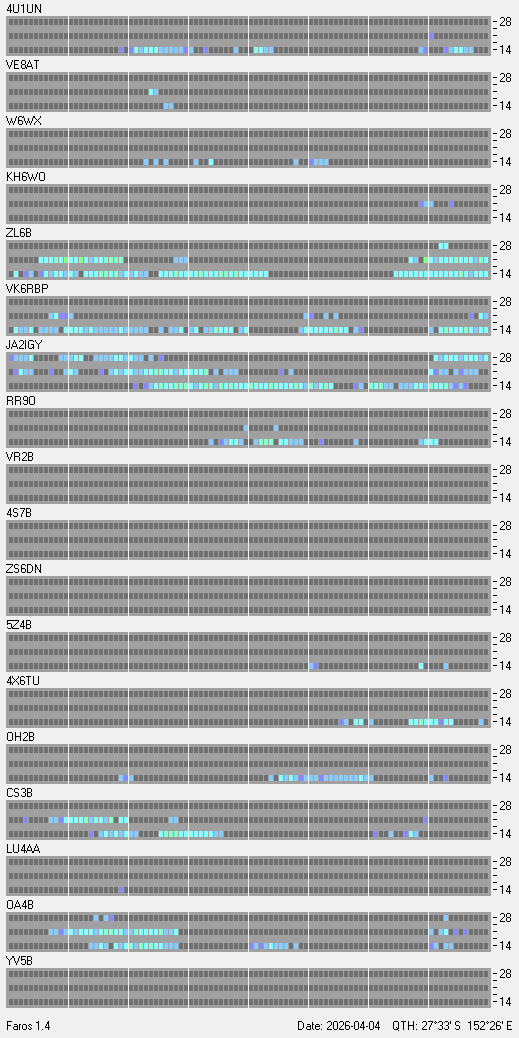

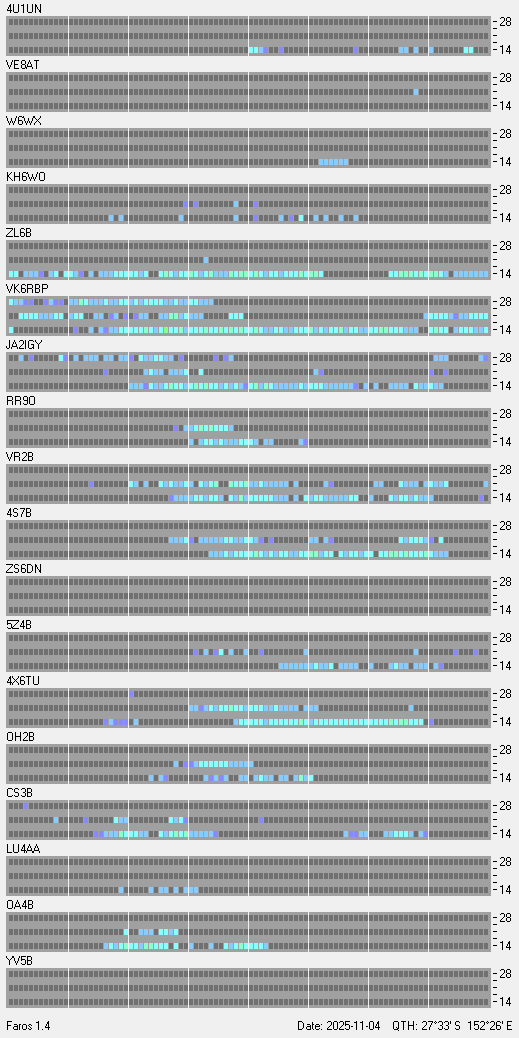

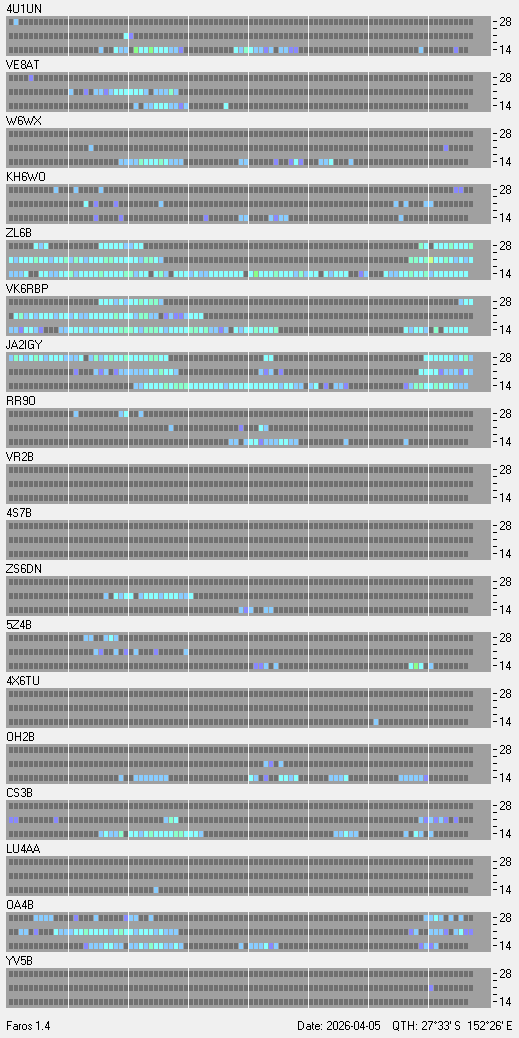

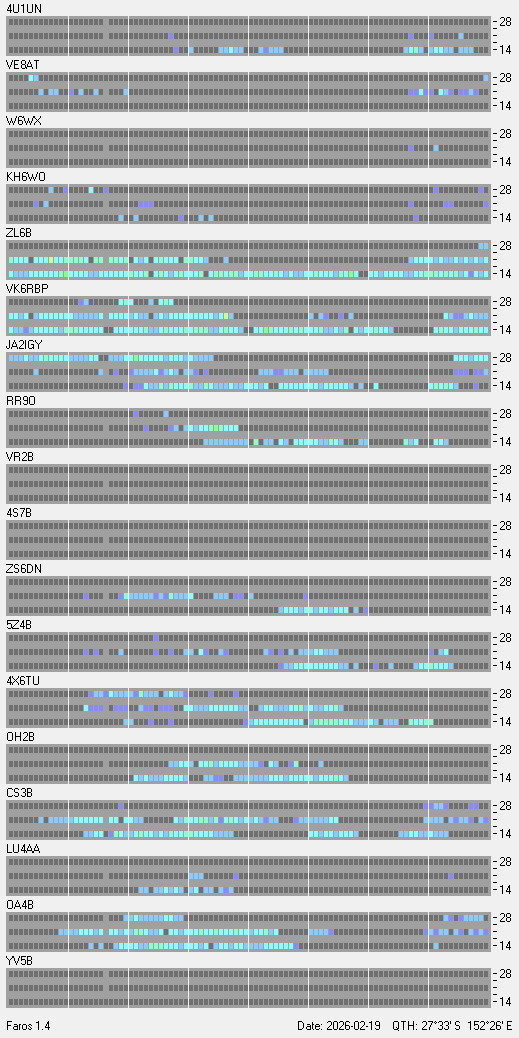

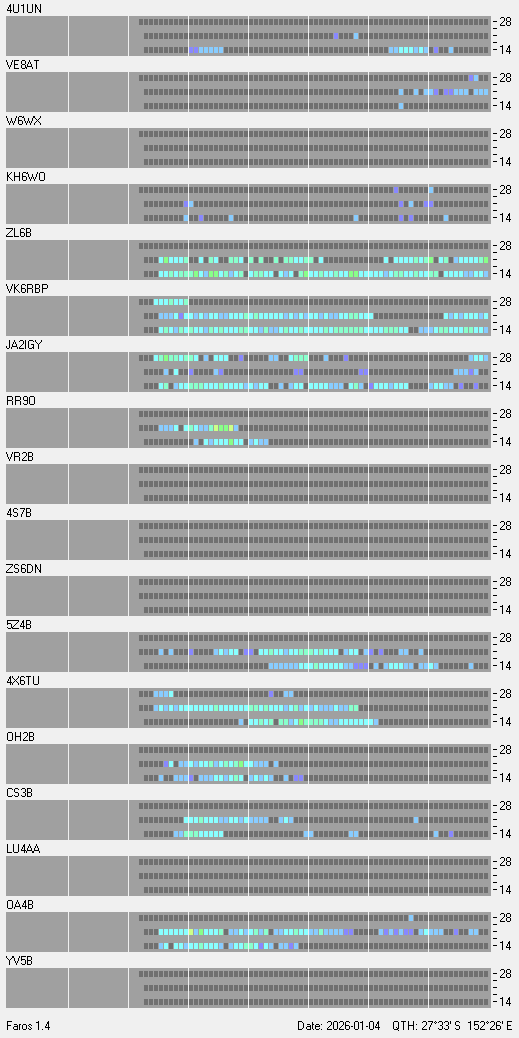

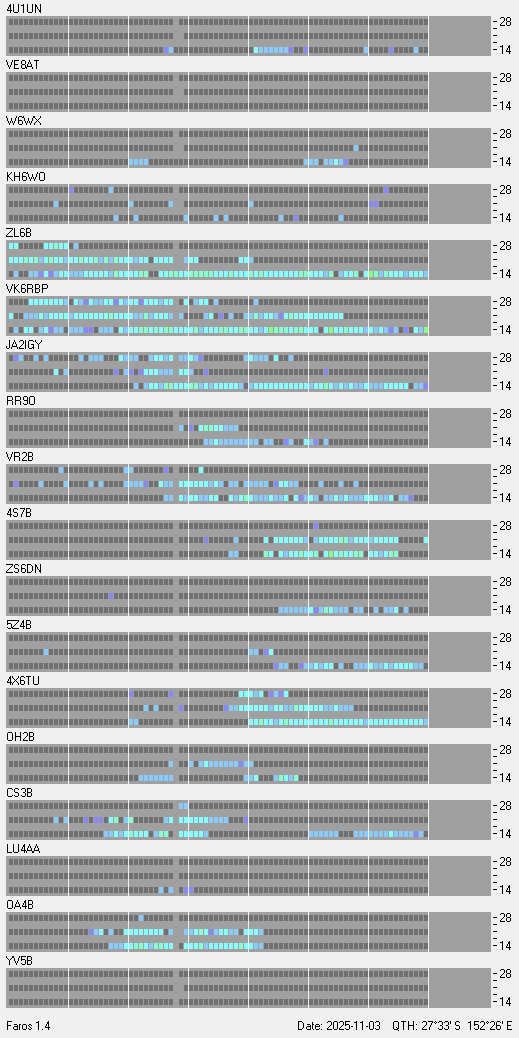

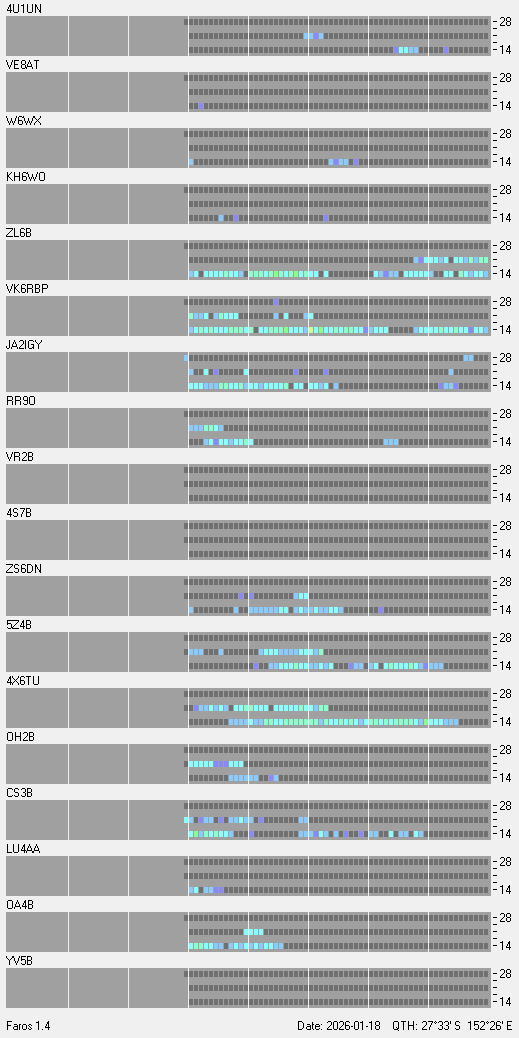

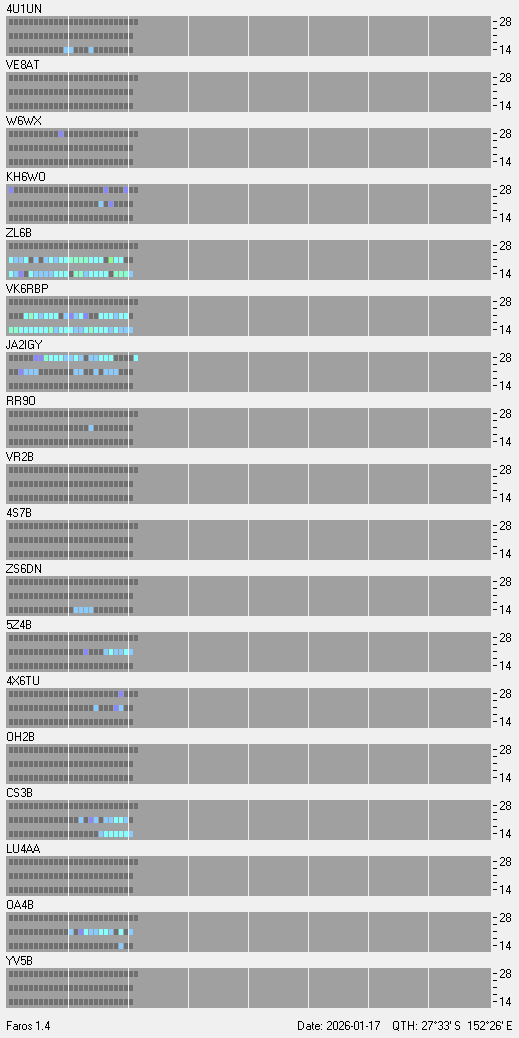

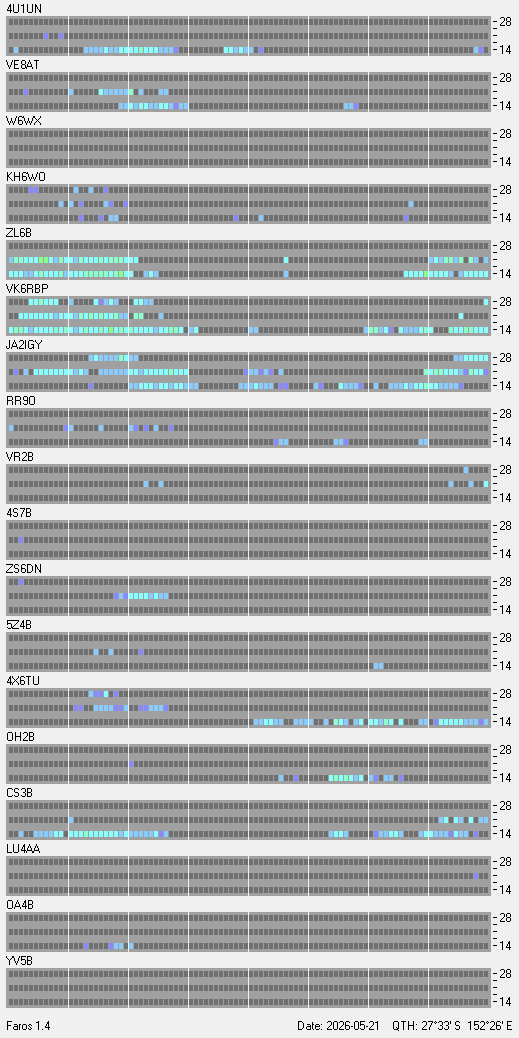

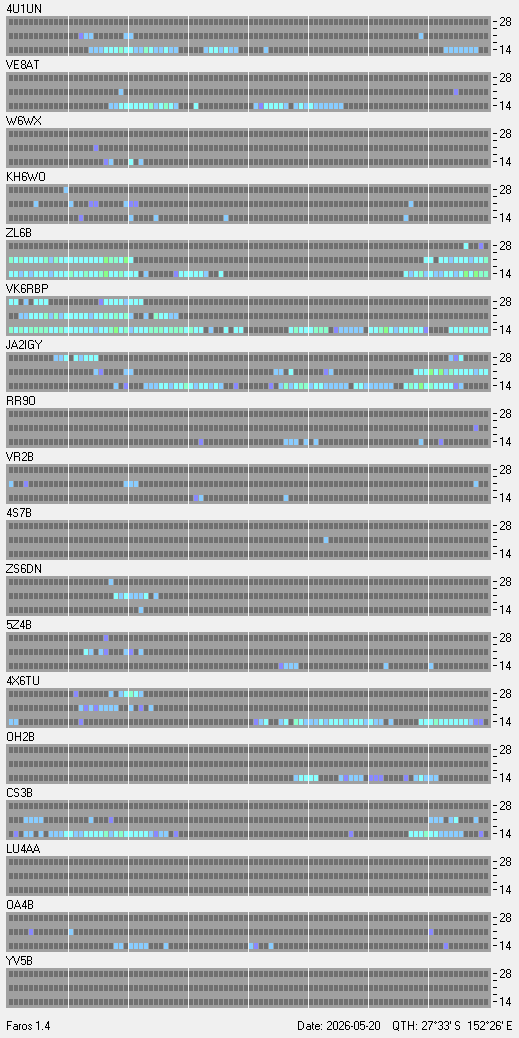

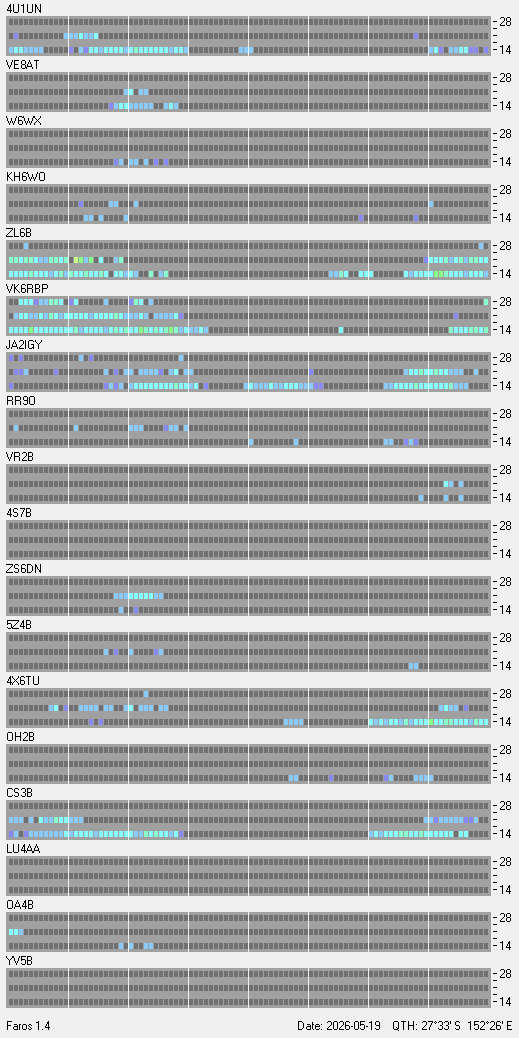

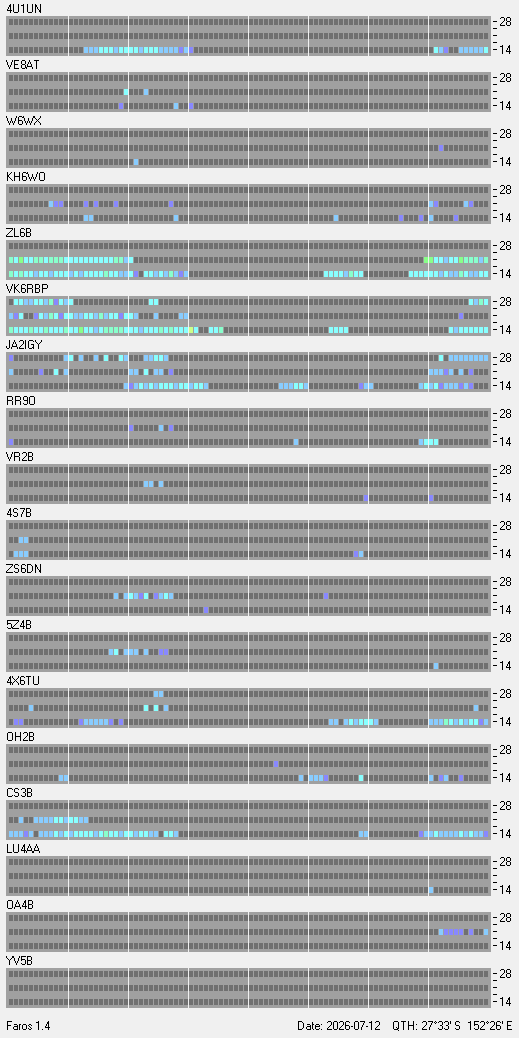

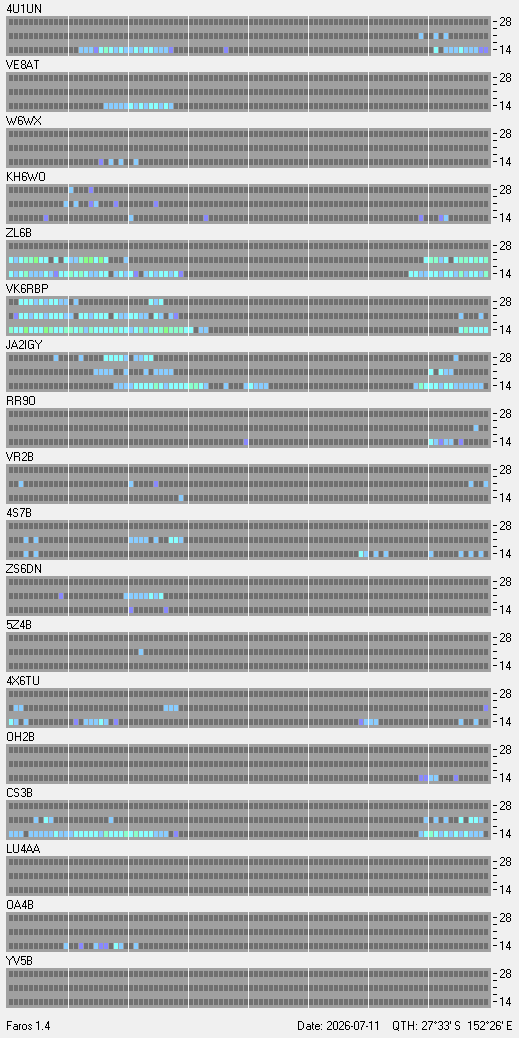

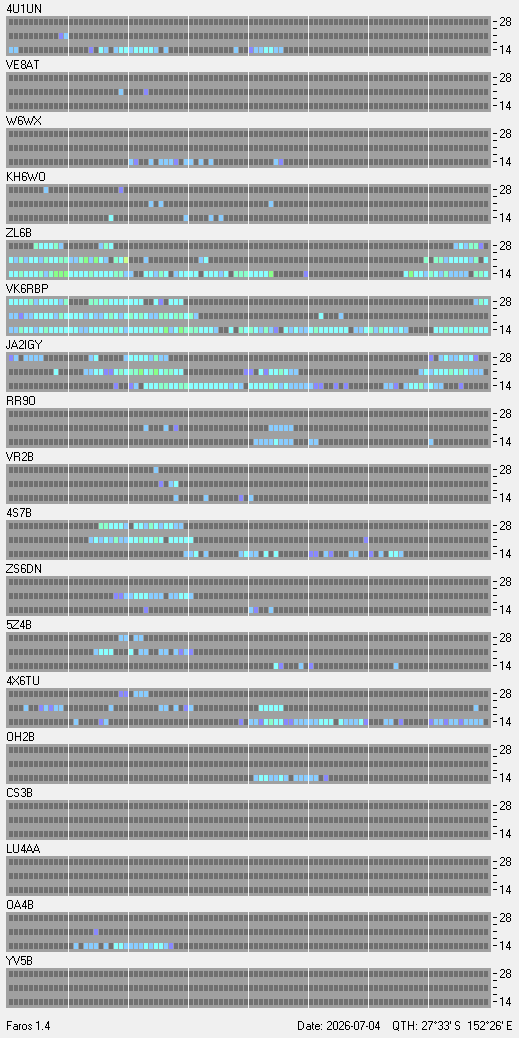

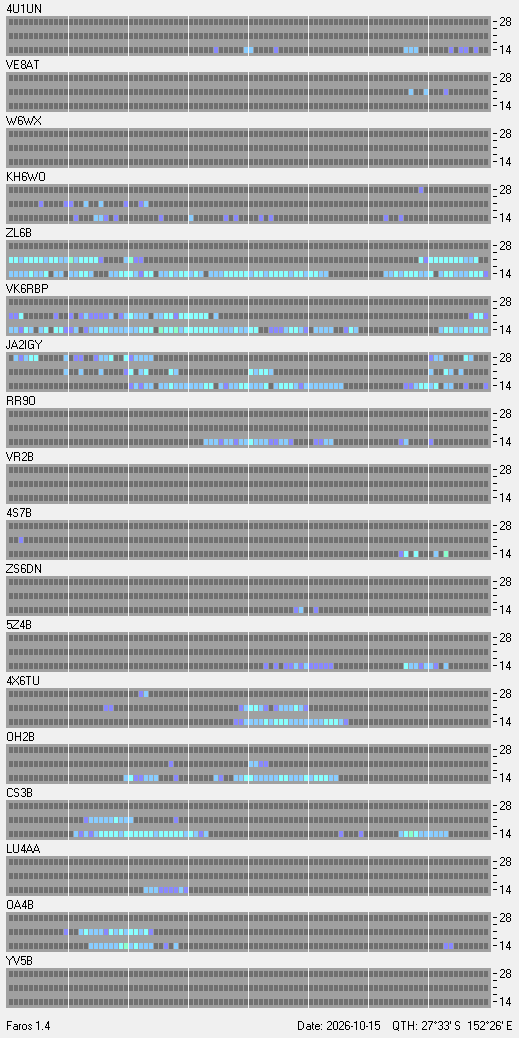

SNR 2024-11-20 (Time in UTC) |
Beacon |
SNR 2024-11-21 (Time in UTC) |
|

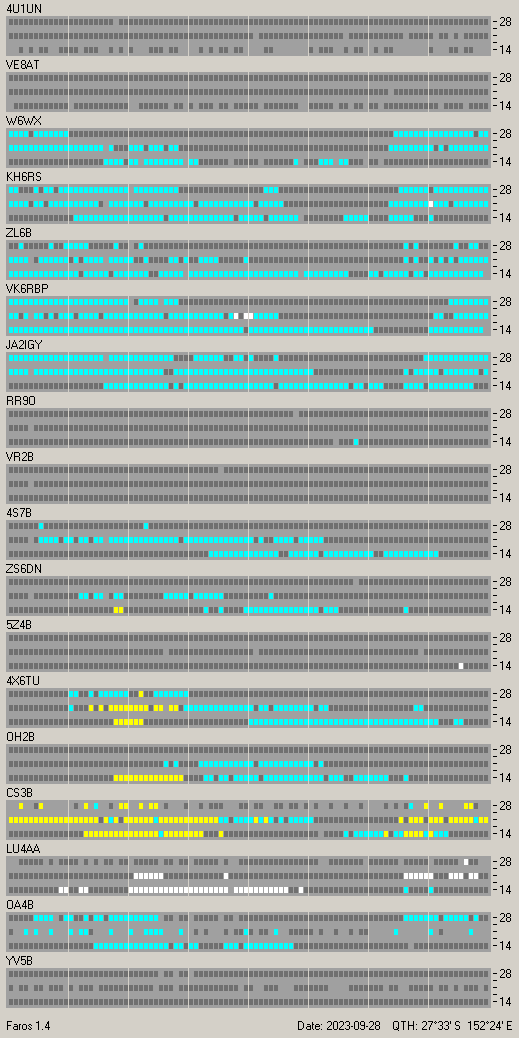

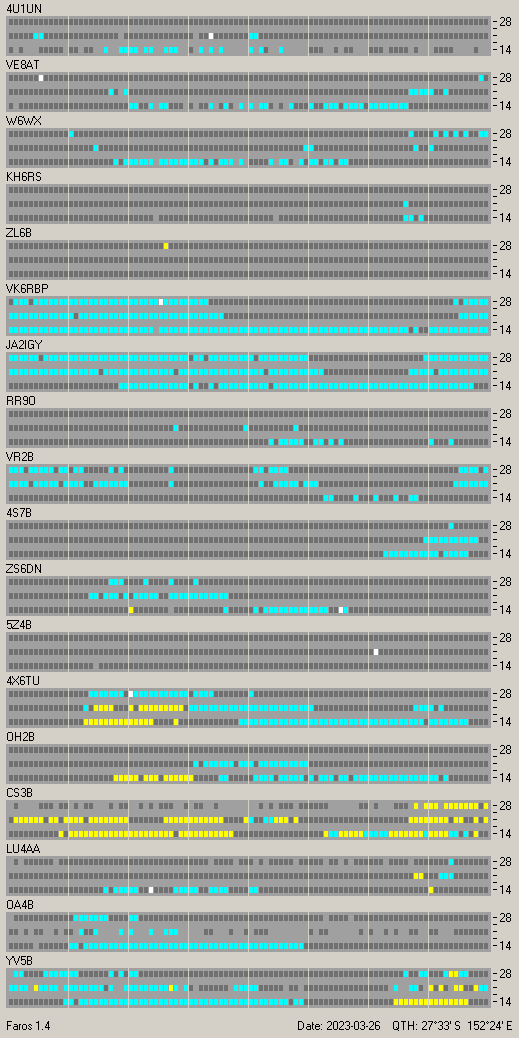

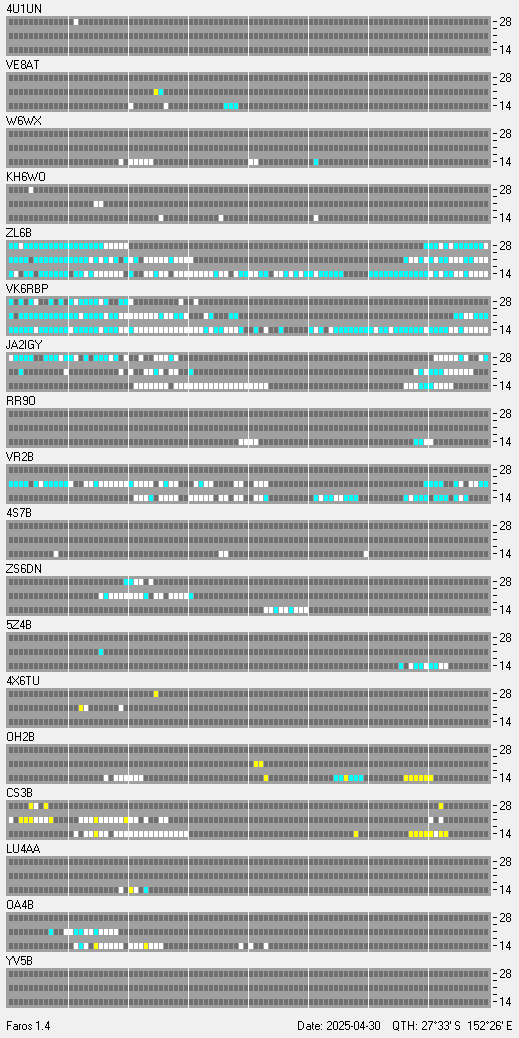

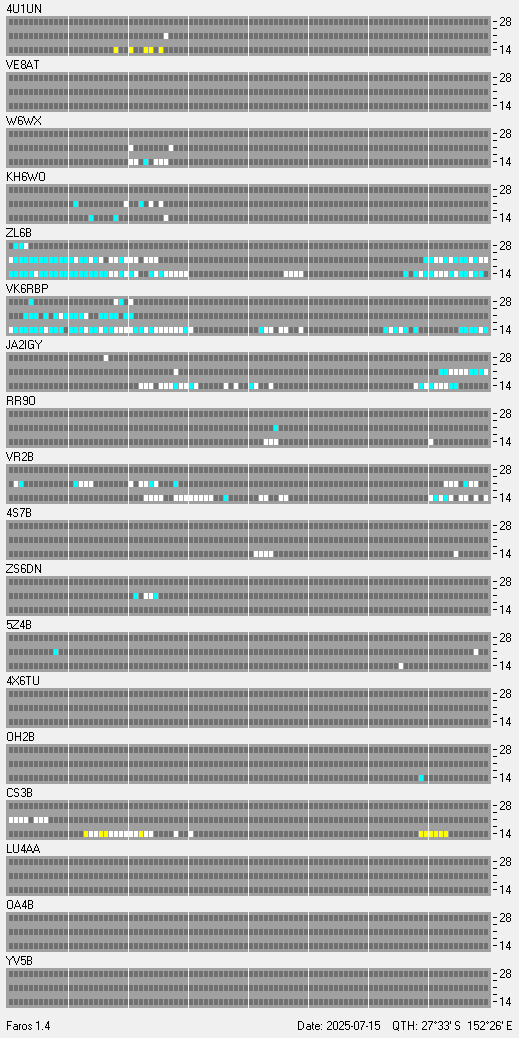

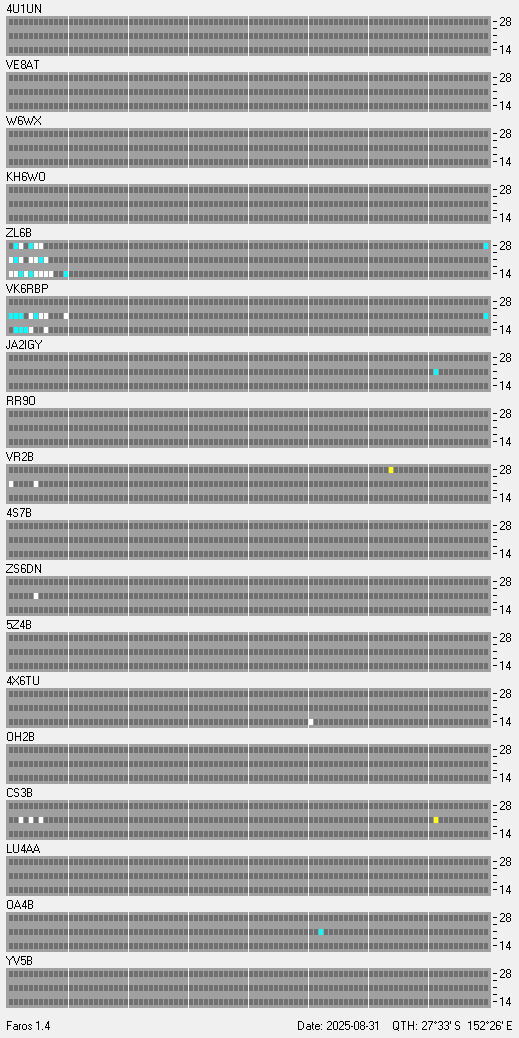

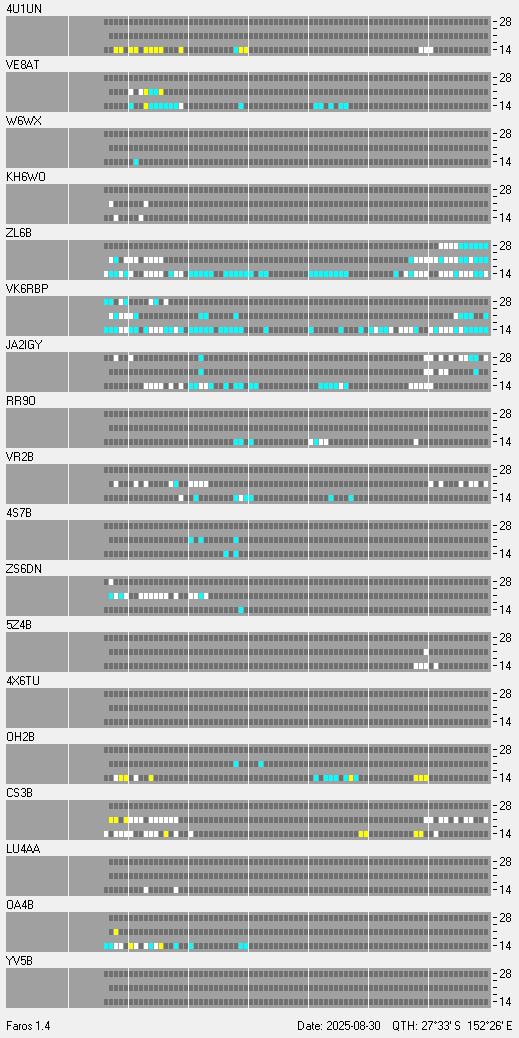

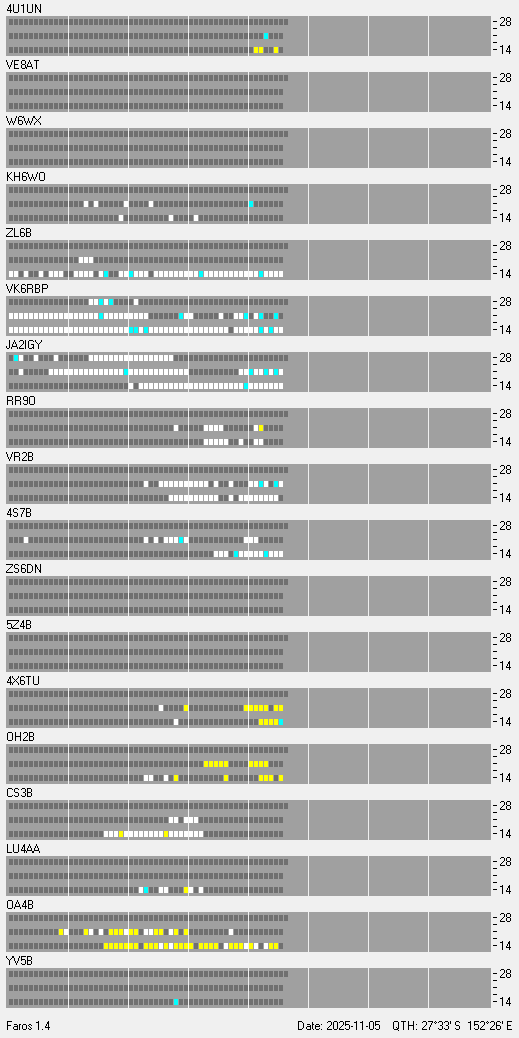

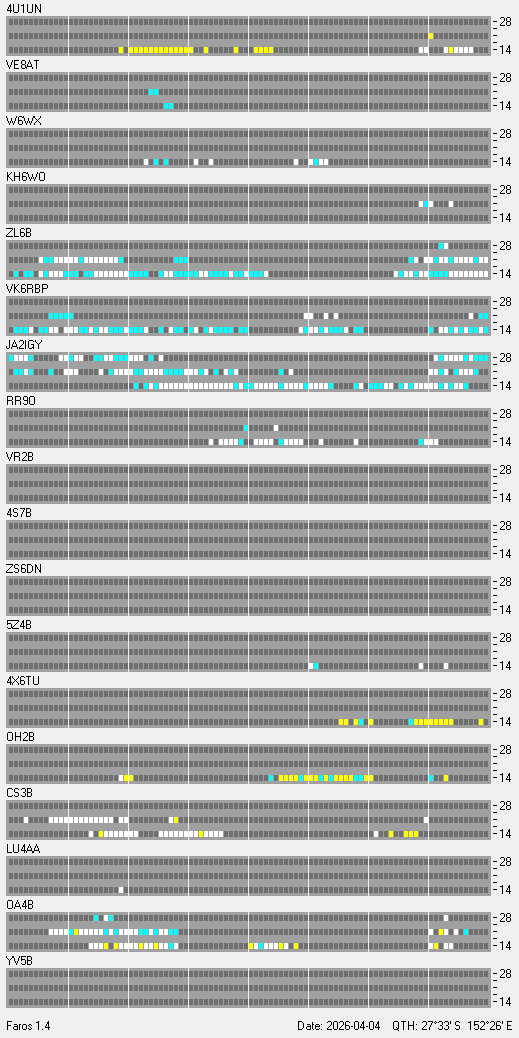

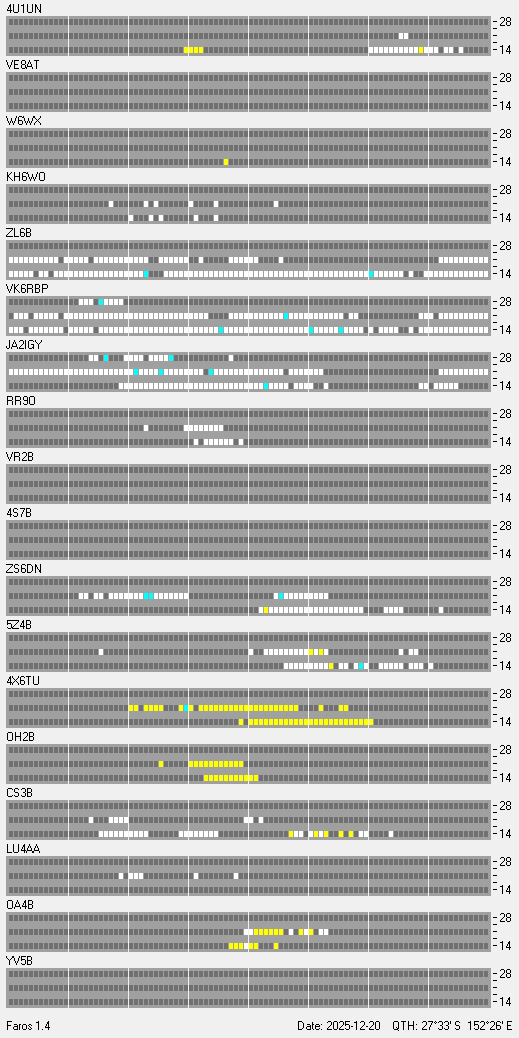

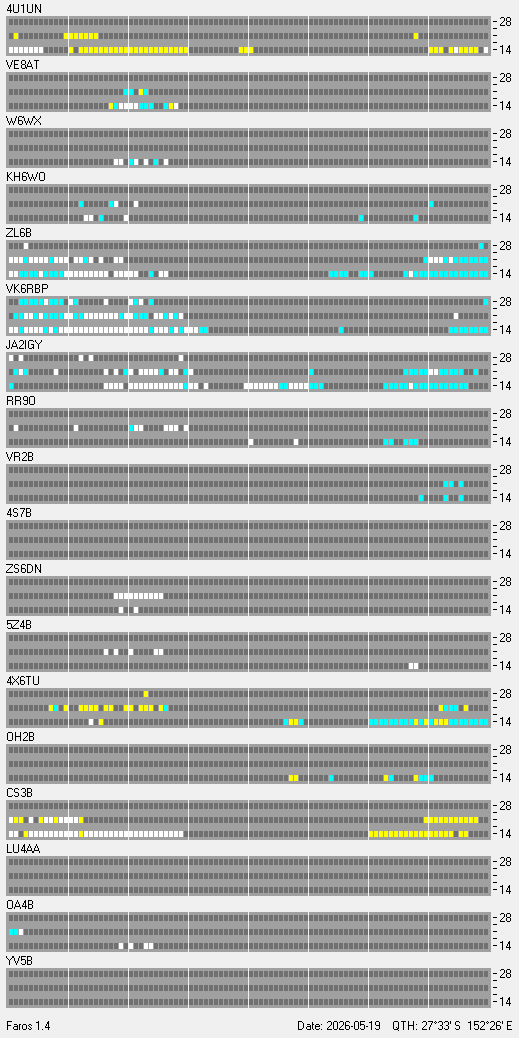

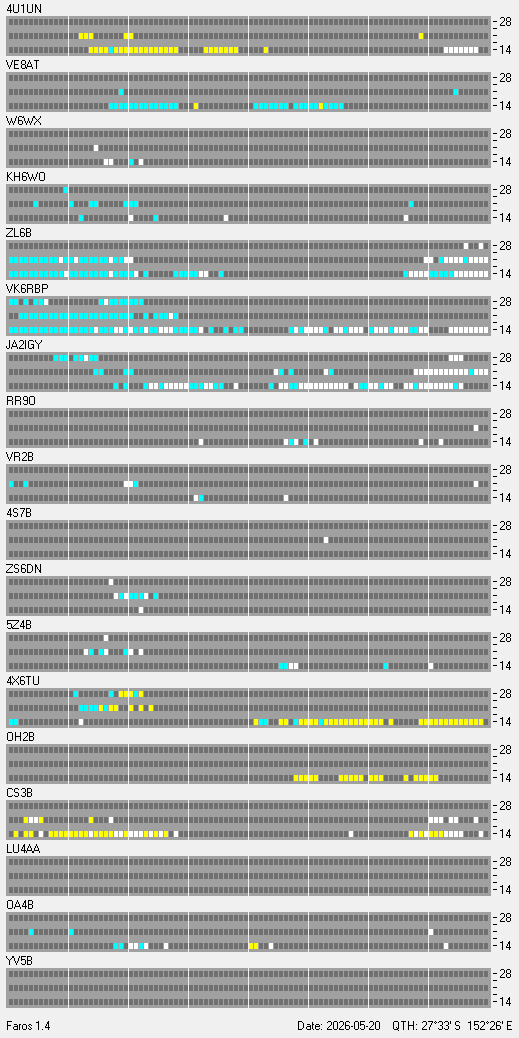

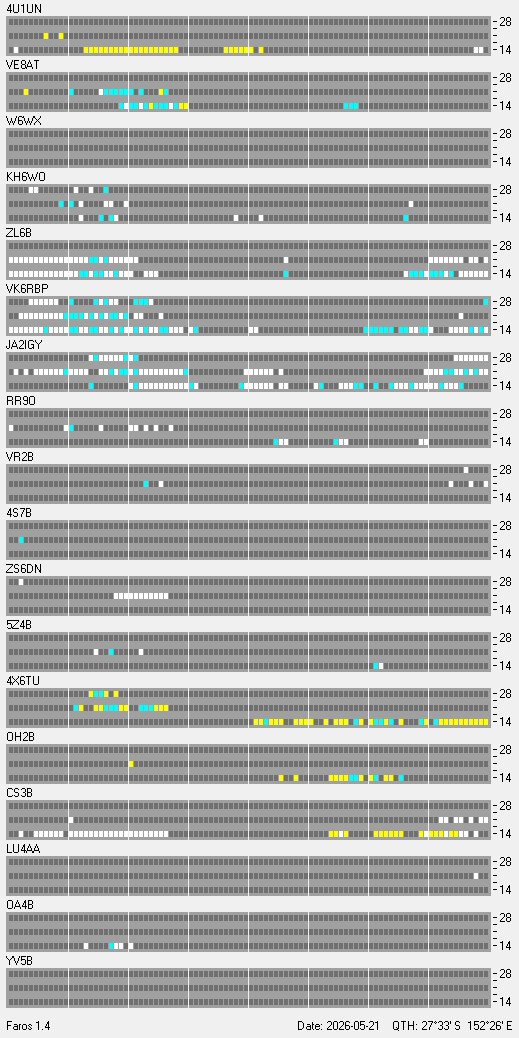

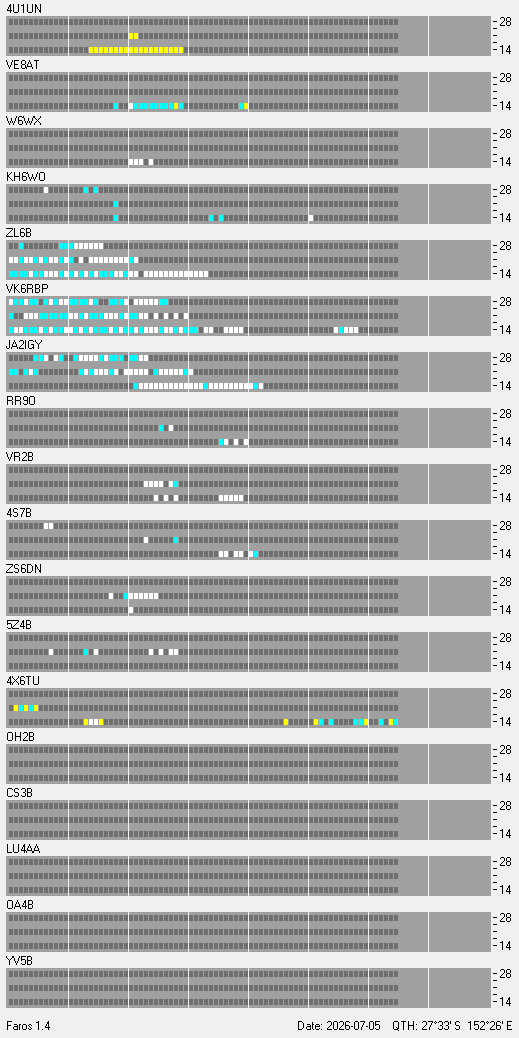

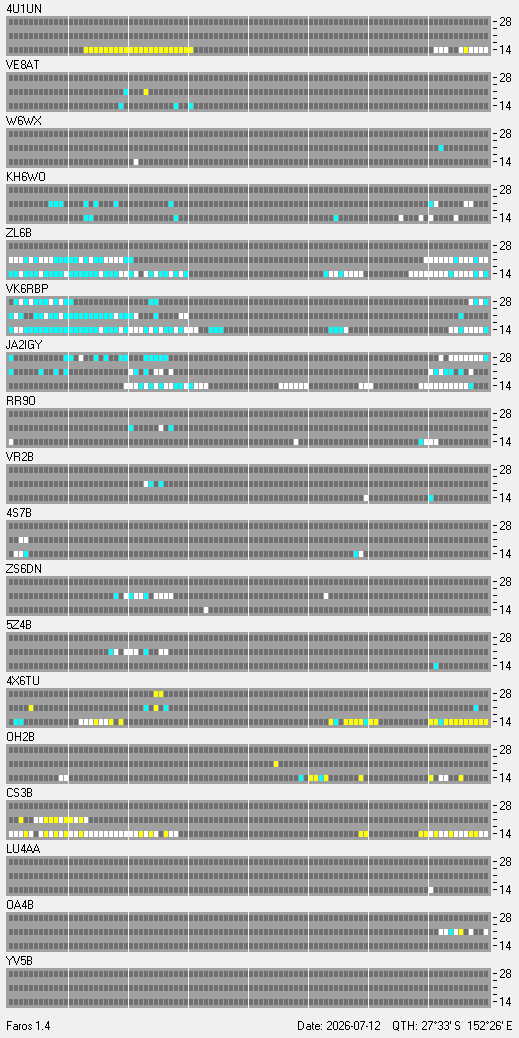

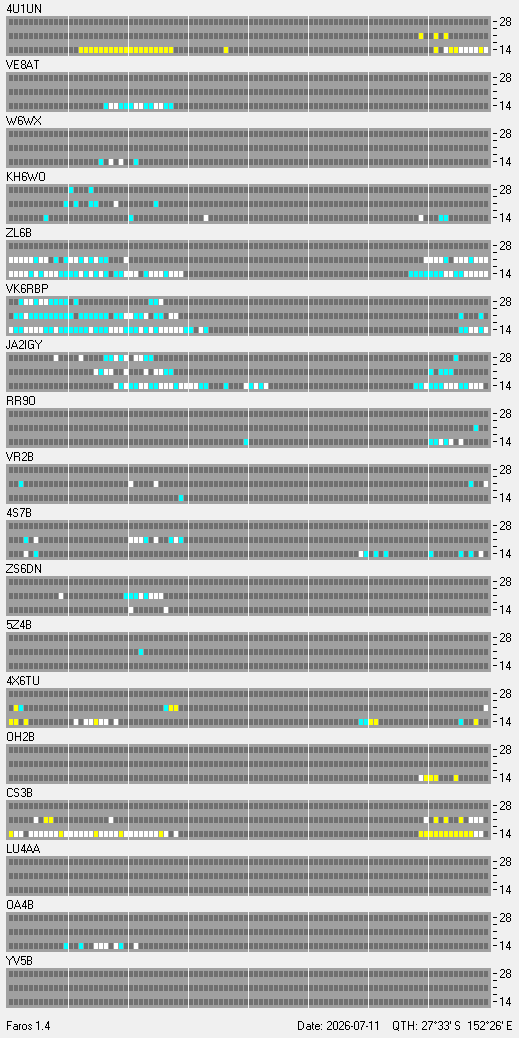

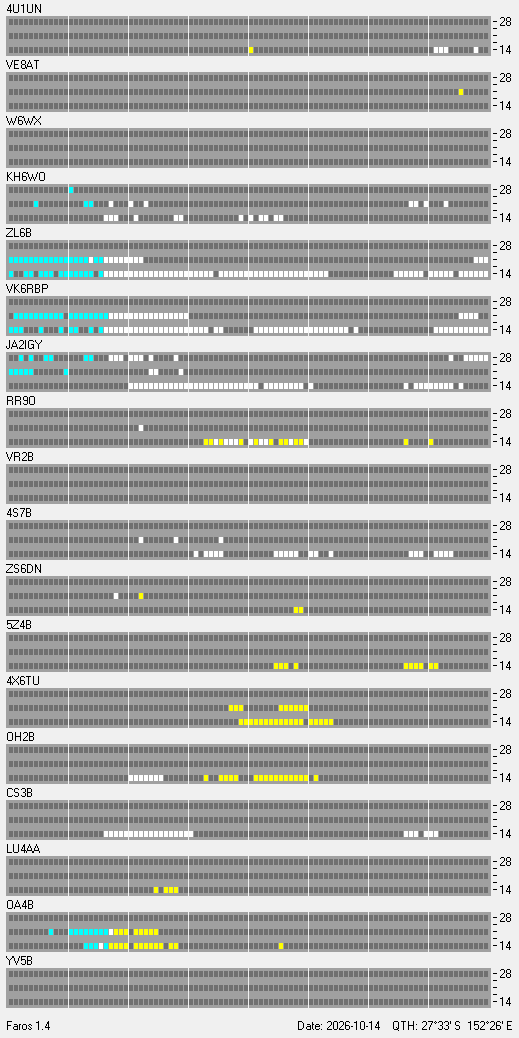

Path 2024-11-20 |
Beacon |
Path 2024-11-21 |
