MY SDR & CW SKIMMER SETUP

(Including Faros Beacon Monitor using SDRPlay)

  • These notes are what I had to do to get HDSDR working with CWSKIMMER using SDRPlay.
  • My laptop has an AMD processor with 8GB RAM running Windows 10 Home.
  • I had several problems with other virutal serial and audio port programs running with Windows 10,
  • but eventually found the following programs that worked successfully for me.
  • VSPE was my choice for setting up virtual COMS ports, and NOT by creating a pair as some suggest,
  • but first creating a connector then a splitter.
  • I could not get two Virtual Audio cables working but did it with the use of only one.
  • The following pictures show what I needed to configure for a good outcome.

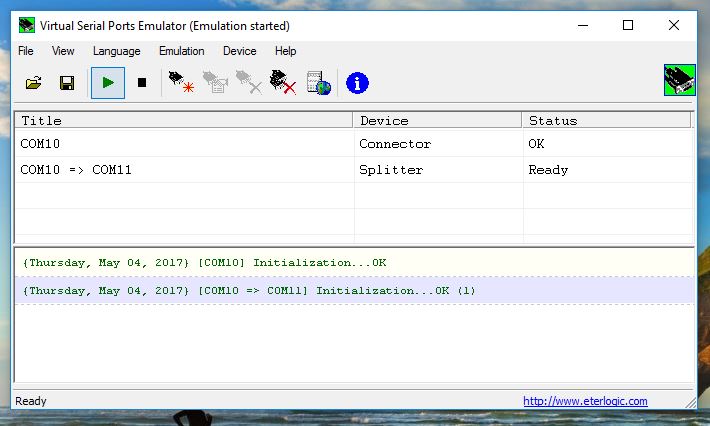

Setting up COM Ports

Create a Connector, then a Splitter. Save setup as a file to recall.

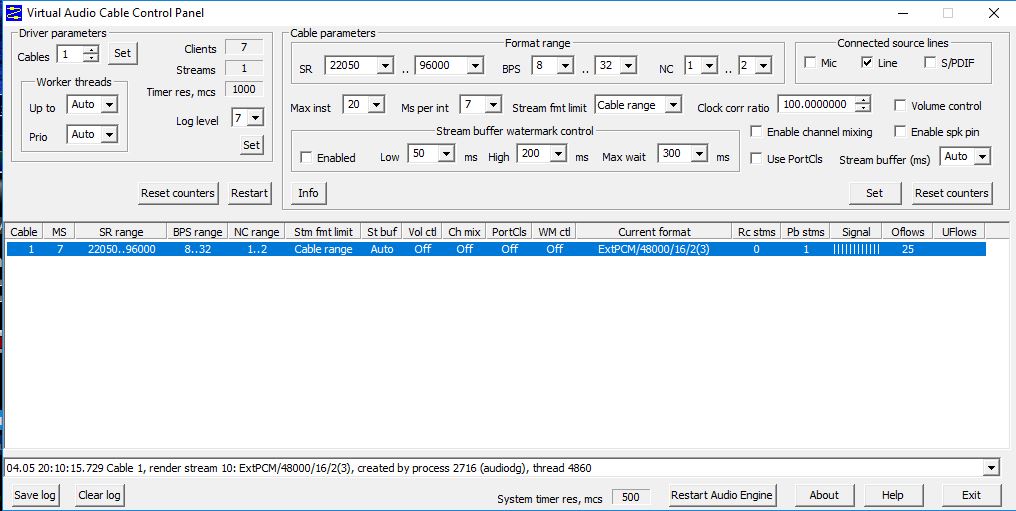

Setting up Virtual Audio Port

Create a Single Virutal Audio Port. Set SR for 22050 and 96000

Setting up HDSDR

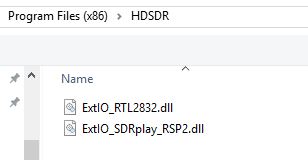

I have two types of SDR, Select the one required. This windows opens on opening HDSDR if there is more then one ExtIO.

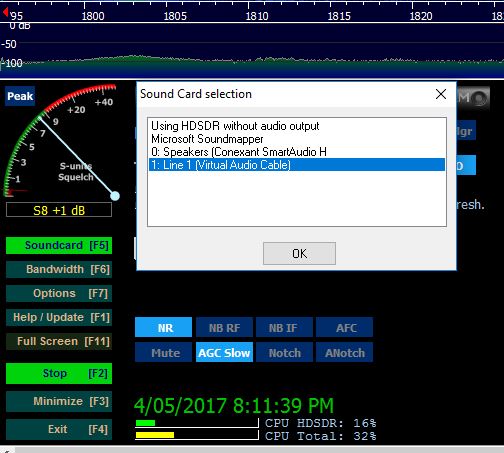

HDSDR Audio Select

Select the Virtual Audio Cable.

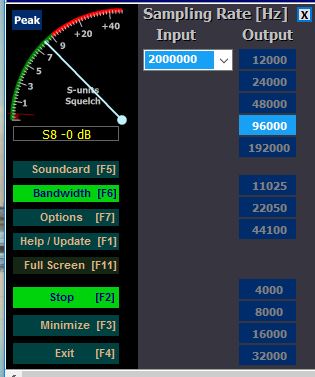

HDSDR Bandwidth Select

Select 4800 Bandwidth -(not 9600 as shown). Skimmer will only select 4800 by default when selecting Softrock IF !!

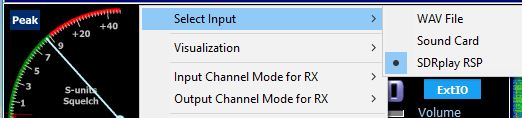

HDSDR Input Config

Select SDRplay RSP.

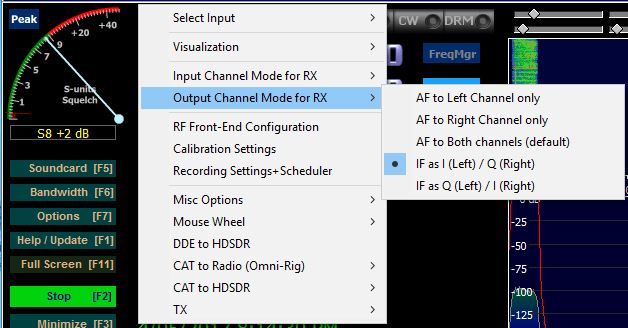

HDSDR Output Channel

Select IF as I(Left)/ Q(Righ).

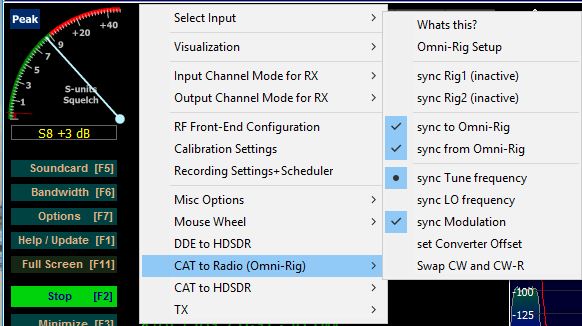

HDSDR CAT to Radio

Select items as per image.

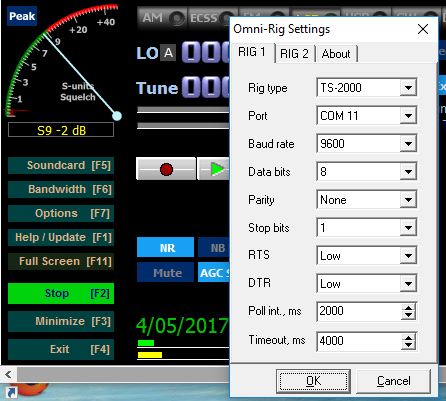

OmniRig Config

Configure as per image.

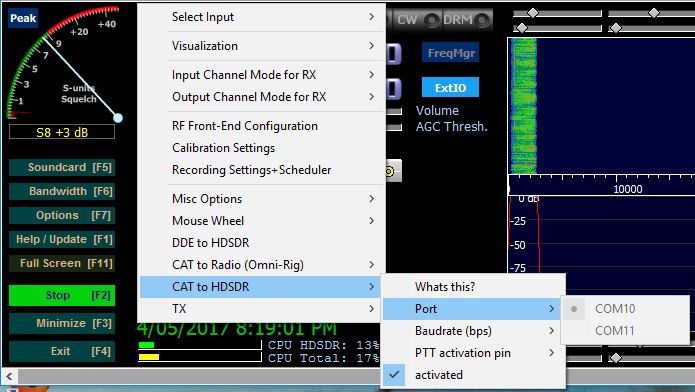

HDSDR CAT Config

Select COM10 as previously configured by the VSPE program. Make sure activated is ticked.

From here setup either CWSkimmer or Faros

Setting up Faros is similar to CWSkimmer below

CWSKIMMER Radio Config

SELECT 48 KHz. CW Skimmer will default to this when using SoftRock-IF.

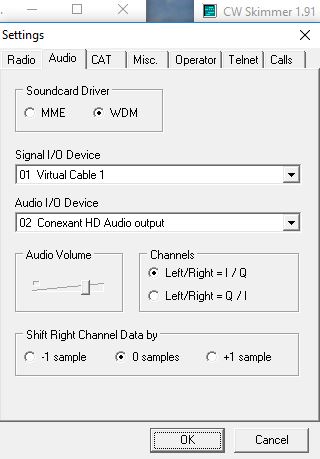

CWSkimmer Audio Config

Setup as per image. Audio I/O Device can be your speakers to listen via CWSkimmer.

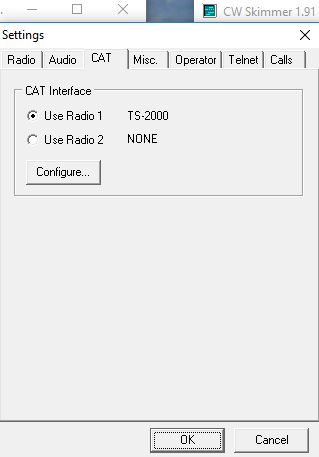

CWSkimmer CAT Config

Setup as per image. Omnirig was setup during HDSDR setup, but can be configured here also.
